Horizontal grinder performance depends on consistent maintenance, but not all maintenance is created equal — especially when it comes to how quickly and predictably you can replace wear parts. The Vermeer duplex drum proves just that.

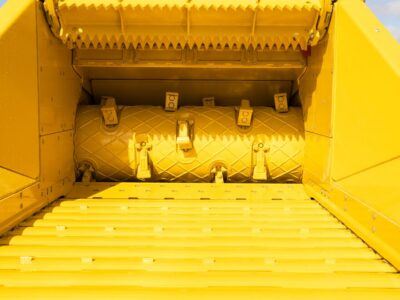

The patented Vermeer Series III hard-faced duplex drum is designed to simplify one of the most time-consuming tasks on a horizontal grinder: tips and hammer replacement. Instead of fighting seized components or spending hours on teardown, crews can move through wear part changes with a system built for access and repeatability.
That means less guesswork and fewer disruptions during wear part replacement.
“The drum is the heart of the machine, and it has to last,” said Jeff Bradley, Vermeer Recycling and Forestry product manager.
This guide breaks down how the Vermeer duplex drum on horizontal grinders is designed to replace wear parts efficiently, while helping protect your performance and uptime.
Why the Vermeer duplex drum improves horizontal grinder maintenance
On older horizontal grinder drum designs, hammer changes often meant fighting long pins, forcing seized components or even welding parts back into place.
The duplex drum was engineered differently.
“It met the criteria of less maintenance time; easier replacement of components compared to welding on,” Bradley said.
Here’s what that means:
- Wedge system replaces long pins for securing hammers
- Individual access to each hammer without tearing down surrounding components
- Self-aligning wedge contact helps with proper fit and reduces uneven stress
- Smooth load distribution through the drum to help protect structural integrity
The result: easier access and process to perform maintenance on common wear parts.
Get more life out of wear parts before you replace
The Vermeer duplex drum lets you rotate the grinder tips, so you can use the entire hard-faced surface. That means maximizing use of the tip by helping extend its usable life, helping keep replacement costs and jobsite disruptions down.
That flexibility matters day to day. Tip wear can happen quickly depending on material, so being able to rotate instead of replace helps keep maintenance tasks minimal and predictable. When tips are rotated at the right time and properly secured, you avoid pushing wear into the hammer or drum itself — helping protect those more critical components while keeping the horizontal grinder producing.
How hammer replacement works on the Vermeer duplex drum
1. Controlled removal
Hammer removal on the duplex drum is built around access and control:
- Wedges are released to free the hammer
- The center retention pin is removed
- The hammer slides out, no forcing required
The system is designed so that once pressure is relieved, components come apart cleanly — reducing the risk of damage during service.
2. Straightforward reinstallation
Reinstallation follows the same logic:
- Slide the replacement hammer into position
- Reinsert the center pin
- Reset the wedges to secure the hammer
The wedge design is rounded, creating full-surface contact between the wedge and hammer, helping with a consistent, secure fit.
That alignment matters — not just for holding the hammer in place but for how force moves through the drum during operation.
3. Confirm performance
The Vermeer duplex drum is designed to reset for consistent rotation to help protect your components and performance. So really you’re double-checking your work when doing a balance check on this self-balancing drum.
After an hour of use, you should also recheck the torque of the nuts, according to the maintenance manual.
Built for durability and long-term horizontal grinder performance
The design details inside the Vermeer duplex drum do more than just simplify maintenance.
It comes down to how the drum manages stress, including:
- Rounded wedge interfaces promote smooth load transfer
- Even contact reduces point-load stress
- Balanced design supports consistent rotation over time
Instead of sharp stress points, forces move more evenly through the drum — helping extend component life and maintain productivity.
Benefits of the Vermeer duplex drum on the jobsite
For crews running a horizontal grinder day in and day out, the benefits of the Vermeer duplex drum show up quickly:
- Shorter maintenance windows
- Simpler hammer replacement process
- Reduced need for specialized repair (like welding)
- More predictable service routines
That adds up to one thing: less maintenance downtime between loads.
Maintenance doesn’t happen in a shop — it happens in the field, often under pressure.
The Vermeer duplex drum is built for that reality with clear access to wear parts, repeatable service steps and components designed to take apart and reinstall cleanly.
When the grinder drum is easier to maintain, it helps the whole operation run smoother.
Ready for efficient maintenance on your horizontal grinder?
If you’re ready for straightforward maintenance, you’re ready for a Vermeer horizontal grinder equipped with a duplex drum.
To learn more about horizontal grinder maintenance, reach out to your local Vermeer dealer to talk with a Recycling and Forestry specialist.
