Trailer-mounted vacuum excavators offer contractors a practical solution for underground utility work. These machines deliver solid excavation performance while allowing crews to move efficiently between jobsites, making them valuable equipment for HDD contractors, utility companies and municipal crews.
From specialized slurry management to high-performance excavation, trailer vacuum excavators offer the perfect balance of power and portability. Whether you’re focused on potholing, storm drain maintenance or water main repairs, these units deliver the performance characteristics your specific applications demand while helping to minimize restoration costs and maximizing crew efficiency.
This comprehensive guide explores the complete lineup of trailer vacuum excavators available through Vermeer dealers, helping you identify which configuration best serves your operational needs and project requirements.

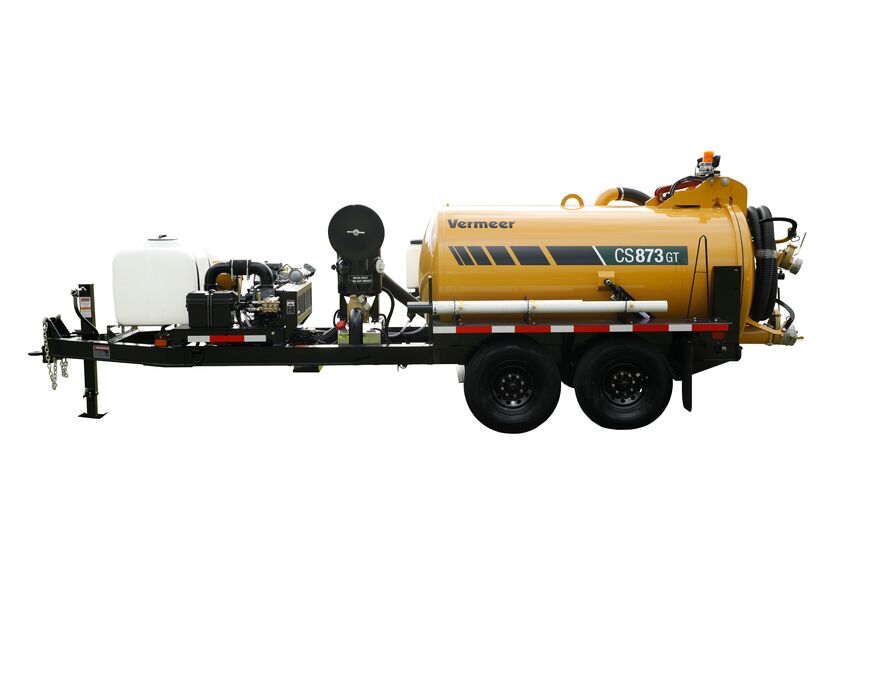

Vermeer CS trailer vacs: Specialized slurry management
Best for: Horizontal directional drilling (HDD) contractors that are primarily focused on fluid management with basic wet material suction needs
Vermeer CS trailer vacs deliver cost-effective slurry management without unnecessary features. These units excel in HDD operations where efficient fluid handling is the primary concern.
Key specifications:
- Suction power: 580 CFM (16.2 m³/min)
- Vacuum rating: 15 in. Hg (.5 bar)
- Hose diameter: 3-in. (7.6 cm)
- Spoil tank: 800 gal to 1,200 gal (3,028.3 L to 4,542.5 L)
- Water system: Optional water kit available
- Engine options: 27 hp (20.1 kW) gas EFI engine for GT models (gas trailer)
The CS series is purpose-built for contractors who want a simple, effective solution for wet or dry material cleanup without the complexity or cost of excavation capabilities.
Vermeer CV trailer vacs: Value-focused performance (competitive vac)
Best for: Utility contractors wanting reliable excavation capabilities at a competitive price point
Built on a durable, low-profile trailer assembly, the CV series offers high performance and accessible components at a great value. These units deliver dependable vacuum excavation capabilities for contractors who need solid performance without premium-level features.
Key specifications:
- Suction power: 580 CFM (16.2 m³/min)
- Vacuum rating: 15 in. Hg (.5 bar)
- Hose diameter: 3-in. (7.6 cm)
- Spoil tank: 500 gal to 1,200 gal (1,892.7 L to 4,542.5 L)
- Water tank: 200 gal to 400 gal (757.1 L to 1,514.2 L)
- Filtration: Cyclonic filtration separator with secondary filter (.5 micron)

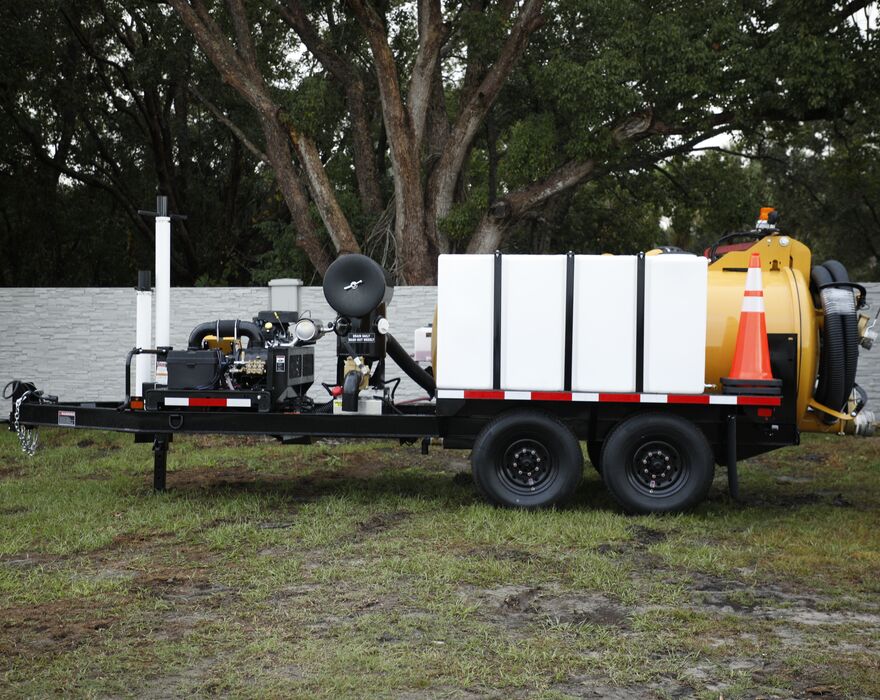

The CV series delivers the core performance contractors need with a price point that keeps costs in check. For higher suction power requirements, consider the CV SGT model (super gas trailer, featuring a more powerful 37-hp [27.6 kW] engine).

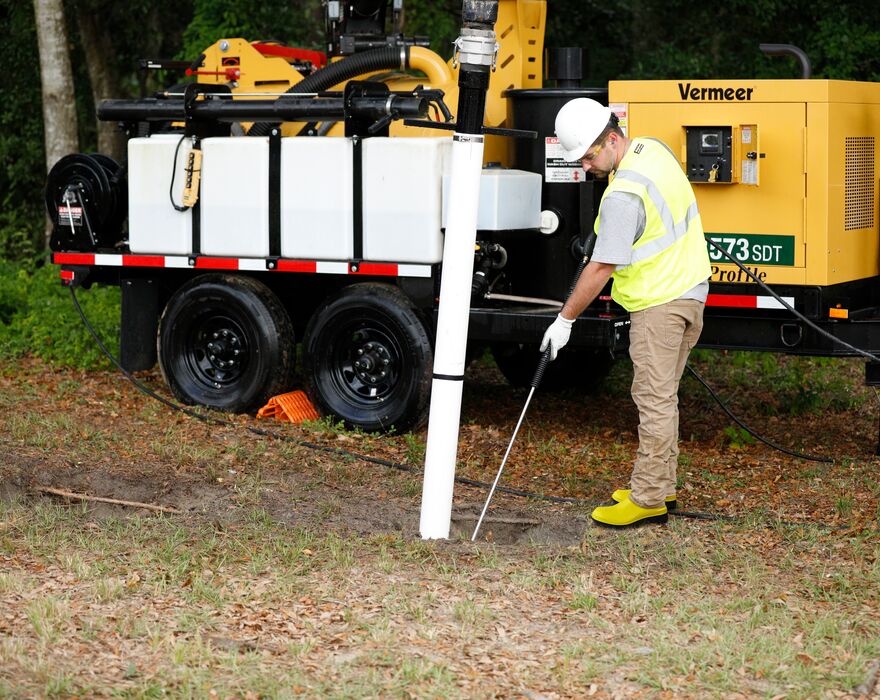

Vermer LP trailer vacs: Streamlined urban performance
Best for: Urban contractors working in noise-sensitive environments with space limitations
The LP series maintains a lower height profile while delivering solid performance. These units are effective in urban work environments where space is limited and noise restrictions apply.
Key specifications:
- Suction power: 580 CFM (16.2 m³/min) to 1,000 CFM (28.3 m³/min)
- Vacuum rating: 15 in. Hg (.5 bar)
- Hose diameter: 3-in. (7.6 cm) to 4-in. (10.2 cm)
- Spoil tank: 300 gal to 1,200 gal (1,135.6 L to 4,542.5 L)
- Noise reduction: Cyclone 4-way valve silencer filtration system (CVS)
- Configurations: Mini, XDT (diesel-powered), SGT (super gas) and SDT (super diesel) variants
The streamlined design of the LP series makes it suitable for residential work, urban utility projects and other applications where a smaller footprint and reduced noise levels are required.

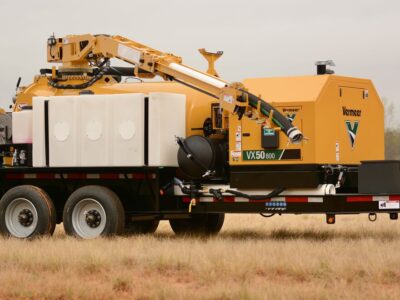

Vermeer VX trailer vacs: High-performance versatility
Best for: Contractors requiring powerful vacuum performance with trailer mobility for demanding applications
The VX series offers exceptional power in a trailer-mounted package, making it ideal for challenging utility work, including potholing and HDD slurry management.
Key specifications:
- Suction power: 1,025 CFM (29 m³/min) to 1,500 CFM (42 m³/min)
- Vacuum rating: 15 in. Hg (.5 bar)
- Hose diameter: 4-in. (10.2 cm) to 5-in. (12.7 cm)
- Spoil tank: 500 gal (1,893 L) to 1,200 gal (4,543 L)
- Water pump: Up to 8 gpm (34 L/min) at 3,000 psi (206.8 bar)
- Filtration: Dual cyclonic filtration with 2-micron poly filter

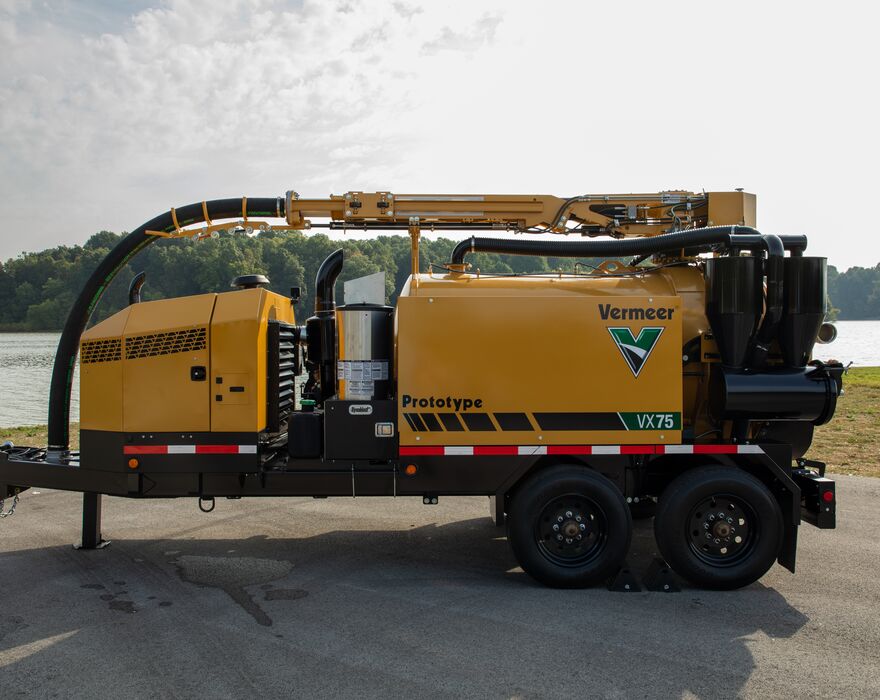

The VX75 model features a 74-hp diesel engine and can be configured with multiple options including a hydraulic boom with 14-ft (4.3 m) reach, air compressor for dry digging and auxiliary hydraulics for powering tools like core saws.

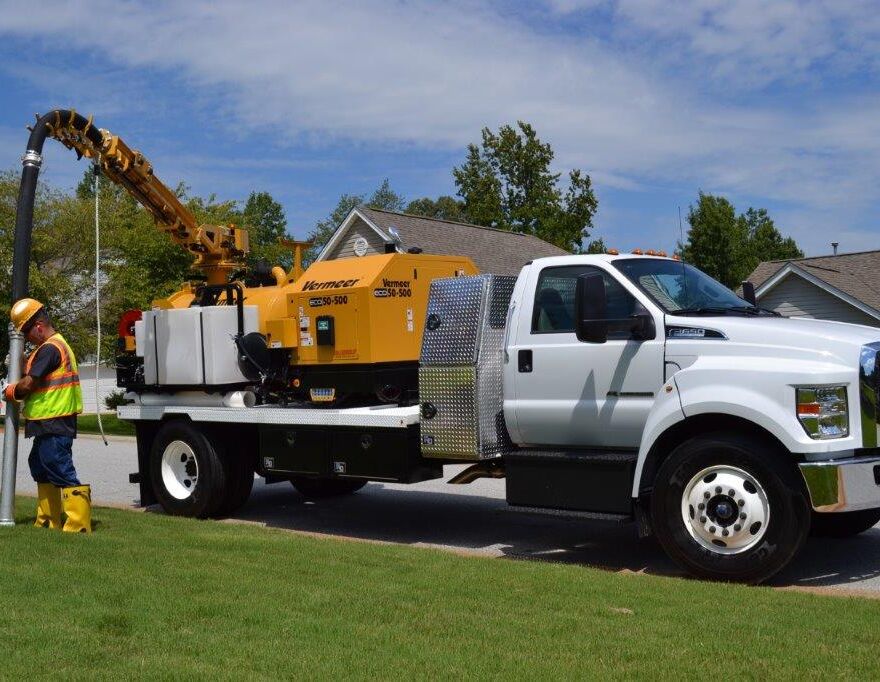

Vermeer ECO vacuum excavators: Mounting flexibility
Best for: Contractors who want to integrate vacuum excavation capabilities with existing equipment
The ECO (economical) series gives contractors the ability to mount vacuum excavation systems onto existing truck beds, trailers or off-road crawler carriers, providing a solution that integrates with current fleet equipment.
Key specifications:
- Models: ECO25 (gas-powered) and ECO50 (diesel)
- Suction power: 580 CFM (16.2 m³/min) on ECO25 and 1,025 CFM (29 m³/min) on ECO50
- Vacuum rating: 15 in. Hg (.5 bar)
- Hose diameter: 4-in. (10.2 cm)
- Spoil tank: 100 gal to 1,200 gal (378.5 L to 4,542.5 L) depending on model
- Water tank: 50 gal to 410 gal (189.3 L to 1,552.0 L) depending on model
- Engine: 24 hp (17.9 kW) gas in the ECO25 and 49 hp (36.5 kW) diesel in the ECO50
This series is designed for contractors looking to add vacuum excavation capabilities to their service offerings without investing in a complete standalone unit. The modular design allows for fast installation on various carrying vehicles, providing excellent flexibility for diverse applications.
Specialty compact model
Vermeer EV150 vacuum excavator: Ultra-compact solution
The EV150 offers maximum portability with a compact 150-gal (567.8 L) spoil tank and 40-gal (151 L) water capacity, making it perfect for light-duty applications and contractors who need minimal footprint equipment for specialized tasks.
Performance-enhancing accessories
Optimize your trailer vacuum excavator operations with these specialized accessories:
- QuickDig™ nozzle: Designed for hydro-excavation with a laminar jet of water rotating in an 18-degree cone for material cutting
- Strong arm support: Features 270-degree rotation to support the vacuum hose with a roller head for adjustments
- Hydraulic boom: Telescoping boom with remote-controlled hydraulic vacuum valve for enhanced operation
- Valve exerciser: Hydraulic attachment for operating water valves and hydrants, making sure they work properly in times of need
- Jetter package: Available on select models for cleaning pipes and culverts up to 12 in (30.5 cm) in diameter
- Winter packages: Options for operation in cold climates
Maximizing your trailer vacuum excavator investment
When you choose Vermeer trailer vacuum excavators, you gain access to comprehensive support that maximizes your equipment performance:
- Expert guidance for equipment selection and configuration
- Comprehensive operator training programs
- Quick access to genuine parts and accessories
- Factory-trained service technicians
- Flexible financing and rental options
This support system helps your equipment perform at its best, maximizing your investment and keeping your projects on track.
Ready to find your ideal trailer vacuum excavator? Connect with your local Vermeer dealer to discuss your specific requirements and explore available configurations.
